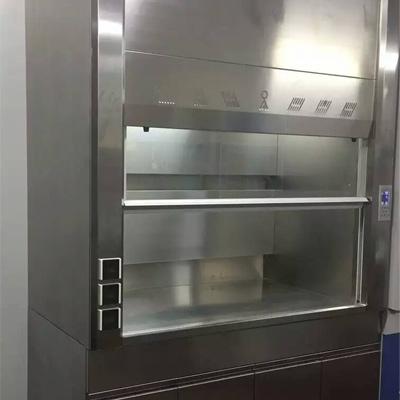

Stainless Steel Fume Hood

Stainless steel fume hood is the first choice for laboratory due to its excellent chemical resistance and durability. It can withstand exposure to a wide range of corrosive chemicals and is easy to clean and maintain, making it ideal for use in laboratory environments where chemical spills and splashes are common.

The construction of a stainless steel fume hood typically includes a durable stainless steel shell, sash, and work surface. The interior is designed with smooth, non-porous surfaces to facilitate easy cleaning and decontamination. The sash, which is the transparent front panel of the fume hood, allows for visibility and access to the work area while providing a barrier against hazardous fumes.

Our stainless steel laboratory hood we offer represents the pinnacle of containment, safety, and energy efficiency. This cutting-edge fume hood, specifically engineered for general chemical use, has undergone rigorous independent testing that surpasses the SEFA-1 standards. Even when operating a 1500mm hood at a face velocity of 0.3m/s with the sash fully open, it only requires 690m3/h (406CFM), showcasing exceptional performance and energy conservation.

Key Features of Stainless Steel Fume Hood

  • SEFA 1 High Performance Hood.
  • A patented design.
  • By-pass airflow design.
  • LED/LCD controller
  • Leakage protector
  • Ergonomic air foil with aerodynamic Clean-Sweep airflow openings.
  • Clear, 6mm thick, tempered safety glass sides, back and removable baffle.
  • Window can be stopped at any position.
  • Pre-wired LED lighting, light switch and blower switch.
  • Removable front panel, side panels and interior cover plates for access to plumbing and electrical wiring.

Fixtured Models Feature

  • The whole body is made by 1.2mm 304 stainless steel, which is laser cut, CNC bent, high-frequency automatic welding.
  • The main columns on both sides are designed with diagonal angles, allowing air to flow smoothly into the interior of the fume hood.
  • The functional modules are all removable (no screws needed) which are easy for installation and maintenance.
  • There is a microcomputer LCD display which has functions such as operating lighting, electric control valves, and fans;
  • Provide 6 spare function holes;
  • The fume hood has a convenient automatic limit function. At the same time, the handle conforms to the principle of airflow and has no dead corners, allowing air to smoothly enter the cabinet.
  • The front baffle of the fume hood countertop is in a circular arc shape, allowing air to flow smoothly into the interior of the fume hood;
  • The load-bearing frame is made by 40 * 60 * 2.0 mm square tubes;
  • There are 4 universal sockets (13A)on the front panel, certified by 3C;
  • Equipped with circuit overload and short circuit protection devices;
  • Reserve water and electricity channels for easy installation of water, power, gas, etc.
  •  The bottom storage cabinet is designed with separate multiple cabinets, each with warning signs;
  • Window: special shape aluminum, can be stopped at any position; Specially made 6mm tempered explosion-proof glass, sliding up and down smoothly without any sound (≤ 1kgf to lift), meanwhile the glass window bearing 150kg without breaking.

Stainless Steel Fume Hood Parameters

Model ZHF-1200A ZHF-1500A ZHF-1800A
Spec./Outer W1200*D900*H2350mm W1500*D900*H2350mm W1800*D900*H2350mm
Spec/ Inner W950*D710*H1030mm W1250*D710*H1030mm W1550*D710*H1030mm
Exhaust Air Rate 855m3/h 1125m3/h 1395m3/h
Base Cabinet 3 doors 3 doors 4 doors
Worksurface Height 850mm
Max Opening 750mm
Air Velocity 0.5m/s (speed adjustable)
Noise ≤68dB
Body 304 stainless steel, 1.2mm thickness;
Work Top 304 stainless steel
Optional: epoxy resin, ceramic;
Control System LCD/LED Display, with start/stop switch for vent exhaust fan, light, power, purify, etc.
Light 18W*2
UV Lamp Emission of 253.7 nanometers for most efficient decontamination;
Baffle Plate 5mm 304 stainless
Window 6mm toughened glass
Water 1*pp cup, with 1 single way brass water tap;
Sockets 4pcs universal sockets, AC220±10%, 50/60Hz; 1*30mA electric leakage protector;
Necessary (not include) exhaust blower, ductwork
Packing Size 1270*920*1050mm

1270*970*1700mm

1570*920*1050mm

1570*970*1700mm

1870*920*1050mm

1870*970*1700mm
